Electrical Safety afloat

A simple electrical polarity indicator.
We have all heard horror stories about dodgy shorepower installations abroad, and following the recent electrocutions on a pontoon in Cyprus, I decided to install a simple indicator.
It consists of three neon lights (not LED) which cost a few pence each from Maplins, and which take a matter of minutes to install.  They are connected together in a triangular circuit between the three poles of the incoming shore supply.   The amber light is connected between live and neutral.  This indicates that power is present, and should normally be on.  Green is connected between earth and live, and again should normally be on, indicating that there is an earth connection.   Red is connected between the earth and neutral, and this should never come on.  If it does, it means that either the polarity is reversed (in which case switches on sockets will not actually isolate an appliance from the live, although they will stop it from operating) or that there is no earth at all (in which case the green will also be lit).
The following truth table shows possible light combinations and the meaning and implications

Indication
Meaning
Implications
Green and amber
Normal, correct connection
Use with normal precautions
Red and amber
Live and neutral reversed
Dangerous installation.  Switches will not isolate equipment correctly, although appliances will function. Risk of shocks if equipment malfunctions.
Green, red, amber
No earth, polarity may or may not be correct, earth pin could be live
Extremely dangerous installation. Serious risk of shocks. Equipment may function, but metal casings could be live!
Green only
Neutral disconnected, circuits live
Hazardous. Switches will isolate, equipment  will not operate, but  may be live.
Red only
Reversed polarity, live pin disconnected, but appliances may be live
Very dangerous installation.  Switches will not isolate equipment correctly, equipment will not operate, risk of shocks if equipment malfunctions.


The more sharp-eyed among you may be wondering what the control switch above the socket is for.  A few years ago a friend of mine had his Mercruiser outdrive very badly damaged by corrosion.  He had always been meticulous in replacing the anodes every season, whether they needed it or not.  The casing was actually ruined, and a replacement part (excluding labour) cost him several thousand pounds.  I was in the same marina, and had noticed that my anodes had disappeared in a matter of a few weeks.  I investigated with a test meter, and identified an earth fault in the supply coming in to the marina.  Essentially, everyone in the marina with shorepower was getting their anodes burnt away.  To give them their due, the marina sorted the problem pretty quickly once it was drawn to their attention, but it made me think seriously.  I considered a galvanic isolator, but these were rather more than I was prepared to pay, and in the particular circumstances I described, the earth fault was so serious that the galvanic protector would probably have offered little protection.
My solution to the problem was to install my own earth on the boat, with the earth circuit permanently connected to the underwater metalwork.  At the same time, I installed a switch (above the socket in the picture) which disconnects the shore earth.   I carried out the appropriate earth tests (as prescribed in the wiring regulations – being qualified as an electrician helps here!) and discovered that my earth was significantly better than the shorepower one.  When we are afloat with shorepower in seawater, the switch is put to the off position to protect the anodes.  Ashore, or when using the generator, or shorepower in freshwater (or in water of low salinity, for example in a tidal river where there is significant freshwater input)  we turn the switch on and use the shore earth.
I have to emphasise that my solution to the earthing problem does not comply with the wiring regulations, as it requires intelligent input and use by a “competent person” as defined in the regulations, because forgetting to switch it on again when required (or not knowing when to do so) can result in a hazardous  installation.  However, if you are competent and have suitable test equipment to check the earth continuity, it is a very effective way of ensuring that your anodes do not protect other boats in the marina.


Wendy’s Diary 22 April 2012 – Spain!



St Jean de Luz is in a stunning location, but, like Cornwall, the wind blows and it rains a lot. The reception from the locals was truly amazing, we were treated like guests of honour in the local fishing club which became a regular haunt. We are not accustomed to drinking out much, living on a tight budget as we do, but this really was an exception and was not expensive. During the week we were invited to an evening of traditional Basque singing by the local male voice choir which was fantastic.

The club members didn’t want us to leave and kept saying that the weather would continue to be bad and we would have to stay there. Much as we enjoyed being there, we felt it was time to move on as soon as the weather would permit, and on Monday, after the wind blew very strongly all night we woke up to a flat calm and took the opportunity of the afternoon tide to make tracks. A weeks’ marina berthing came to 51 euros and the Capitainerie gave us a 2011 almanac as a parting gift, so all in all an absolute bargain. The 6 mile sail to Hendaye went without incident, and we very soon found our way around the back of the marina and anchored in the bay, sheltered from the worst of the winds that were forecast for later that night.

In the morning we wanted to go in search of bread, and having stopped first at the local sailing club to ask permission to leave the dinghy, we found no one so moved on to a pontoon belonging to the Yachting club. A request to leave the dinghy for a while was not granted, with apologies, but the mayors orders, and by the way, anchoring is no longer permitted in the bay and if you don’t go and move your boat we will report you to the local authorities! We went round to the marina at Hendaye who quoted us 42 euros for 2 nights, with the 3rd free. Not in the marina but on a cheaper pontoon on an outside wall, no water or electricity. We walked over to inspect it, the wind was causing some steep slop, and agreed it would make a very uncomfortable berth.

These were the waves inside the harbour!

We decided to take our chances and go and enquire on the other side of the river, so upped anchor to motor over to SPAIN. At Hondaribbia we found a very welcoming Capitanerie and the offer of berthing for 11 euros a night including wifi. Another very scenic location on the odd occasions that the rain clears and you can see the mountains. Several days of high swell (5M) and SW winds followed so we stayed put exploring the area on our folding bikes. John has been delighted to be speaking Spanish again, although a little rusty and somewhat complicated with all the French in his head. My vocabulary extends to about 20 words, and I am not planning on breaking my other leg in order to be able to converse in another language.

The old walled town of Hondarribia

On Saturday the pontoons burst into life when all the locals arrived to do waht boaters do when the time permits but the weather is not good. Spring cleaning, general maintenance, catching up with old friends, checking out new neighbours etc. John went out to speak to a local couple who were peering at Freya Frey, and, as is his wont, invited them onboard for a cup of coffee. 4 hours later and with a lot of information exchanged, we moved to their boat for a very enjoyable evening meal. This was another lovely and to us typical example of the camaraderie that exists within the boating world.

Today we set off, with two destinations in mind depending on the weather. The favoured one being Getaria, 20 miles away, with Posajes, a commercial port available 6 miles away if the weather/sea turned disagreeable. Plan C came into play around half an hour after setting off which was to return to Hondarabbia as the swell was very uncomfortable. I have taken a screenshot of our electronic chart software, the purple squiggly line is our “track”, showing how we poked our nose out beyond the headland to test out the swell.

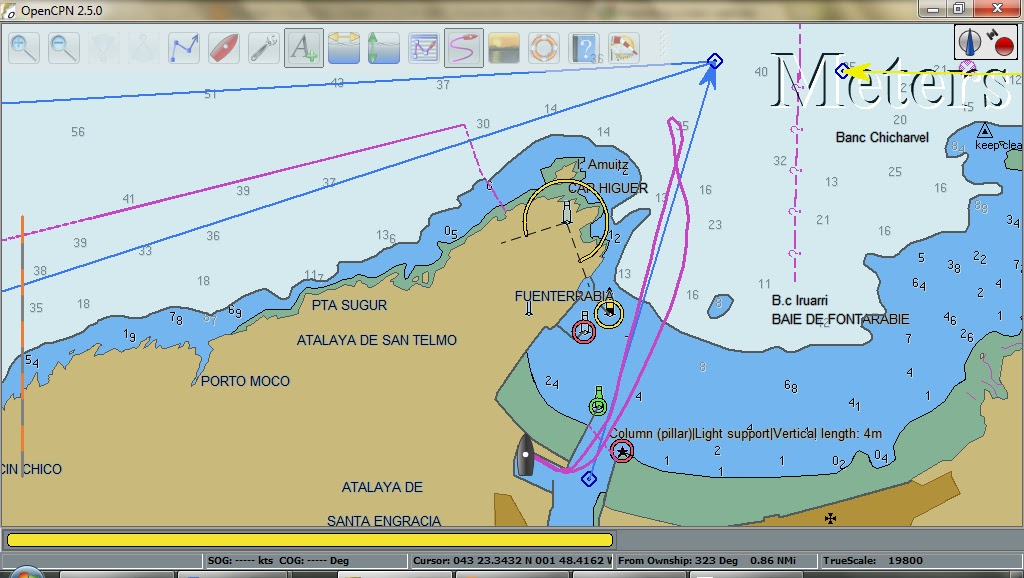

The track out beyond the headland and back!
